Acc-Red 4 ft Portable Folding Wheelchair Ramp, 30 Inch Usable Width, 300 kg Capacity
-
Free PAN-India DeliveryDispatch within 5 working days
-
1-Year WarrantyAgainst manufacturing defects
-
7-Day ReturnsOn standard ramps, unused
Product Details
Portable Wheelchair Access for Steps and Doorways

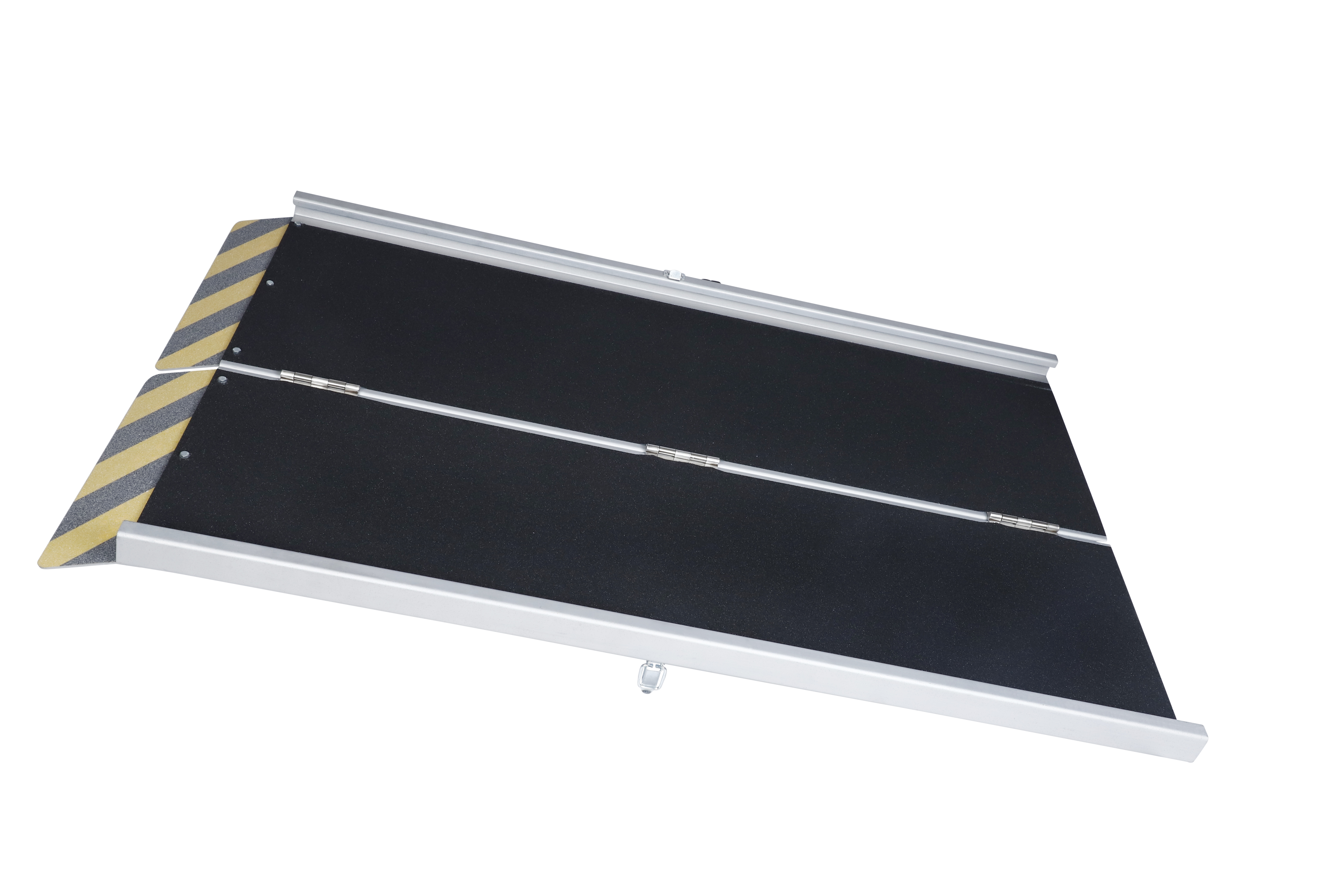

The Acc-Red 4 ft Suitcase Ramp is a portable, folding aluminium wheelchair ramp for temporary access over steps, doorway thresholds and kerbs. Use it at home, at suitable business entrances or while travelling. It weighs 12.5 kg and opens without assembly.
- 30-inch usable width for compatible wheelchairs and mobility scooters.
- 300 kg total load capacity, including the user, mobility device and anything carried.
- Anti-skid surface for slip resistance.
- 4-inch transition flap with rubber padding underneath to help grip the upper landing.
- 4.5 cm side guards help guide the wheels.

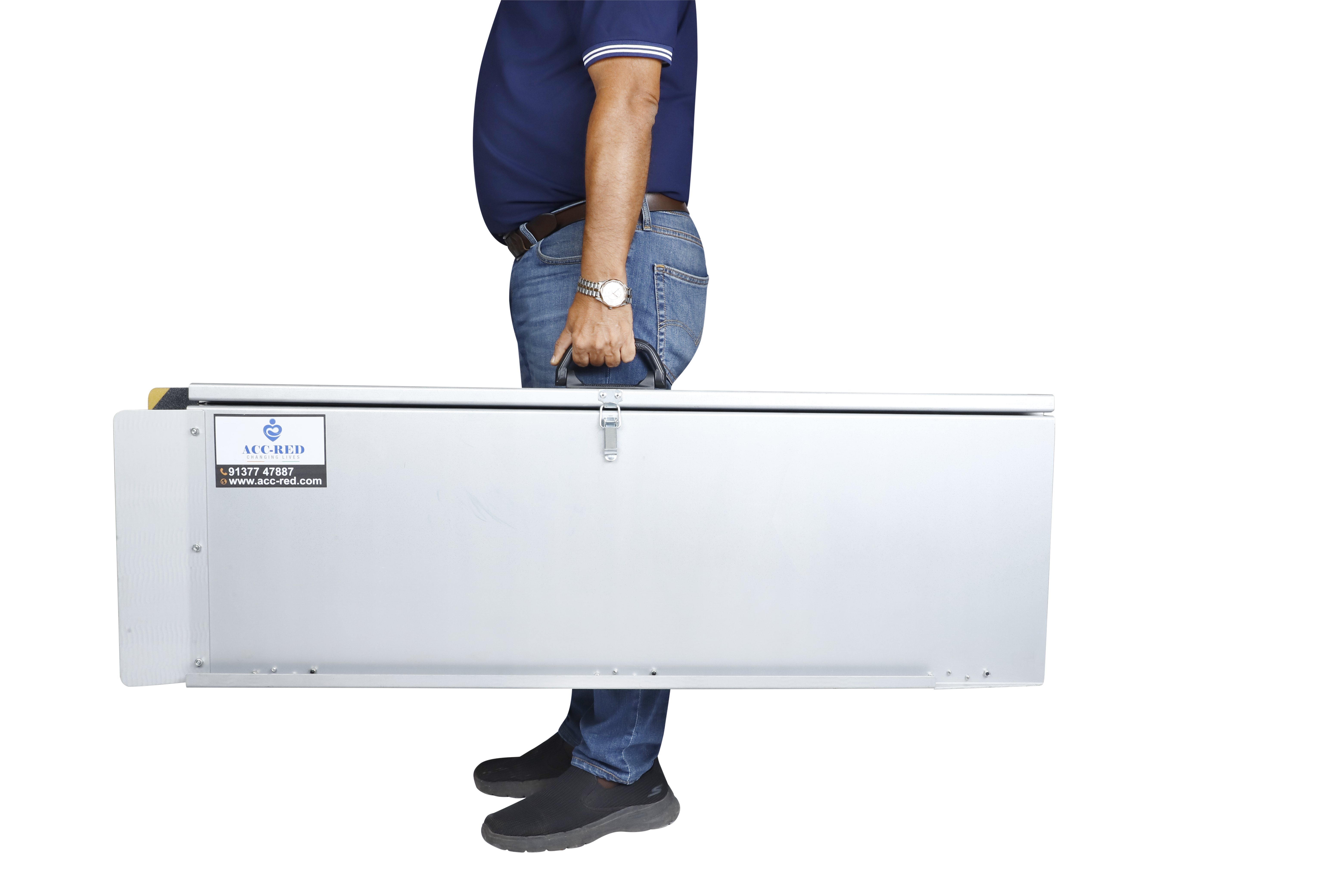

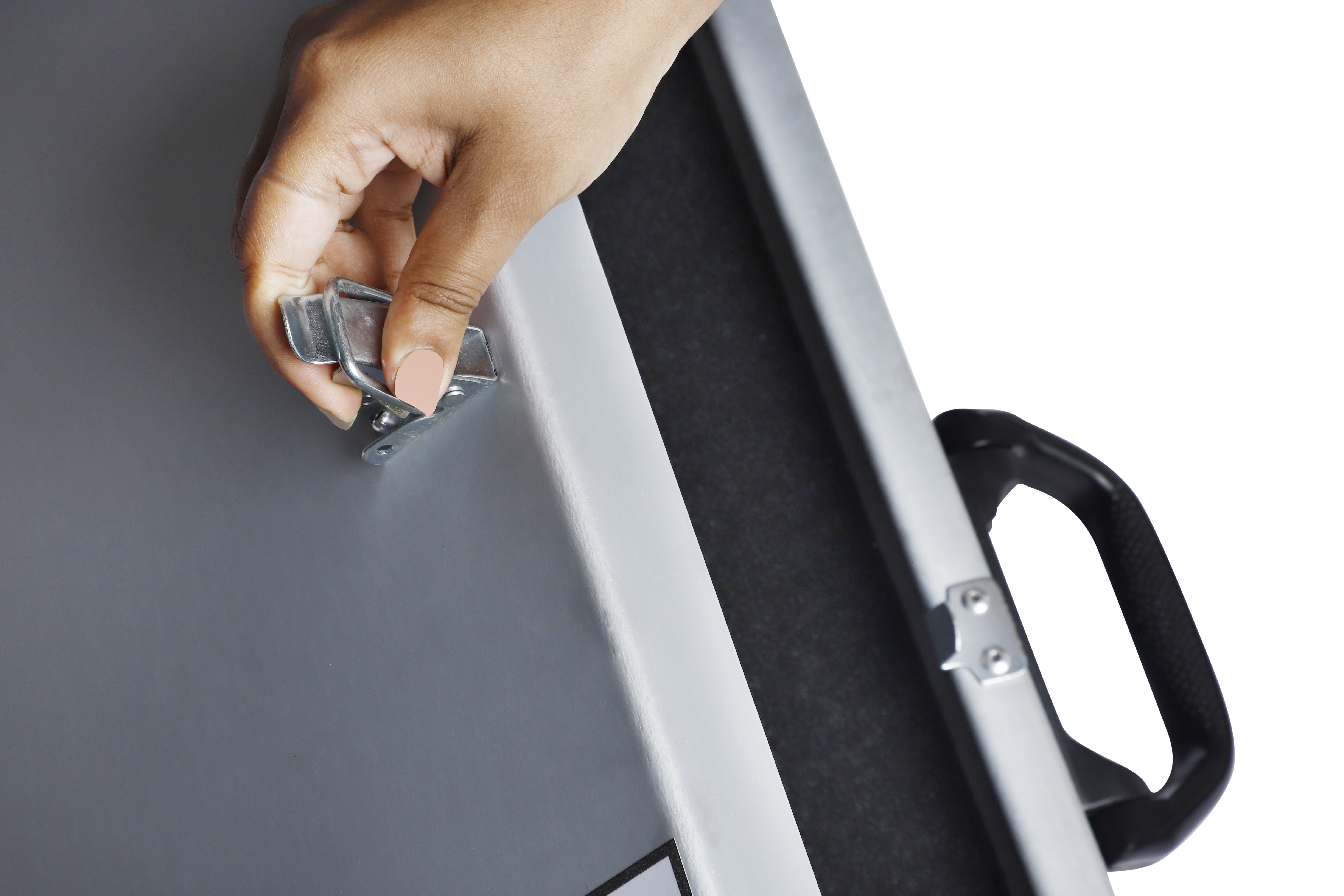

- Single-fold design with a carry handle and latch for storage and transport.
Check the Fit Before Ordering
- Step height: Up to 12 inches under Acc-Red’s steepest portable-ramp guidance, subject to user, wheelchair and site suitability.
- Doorway clearance: At least 33 inches.
- Device width: Must fit within the 30-inch usable surface.
- Landing: Check for stable support and at least 1500 × 1500 mm of clear turning space after positioning the ramp.

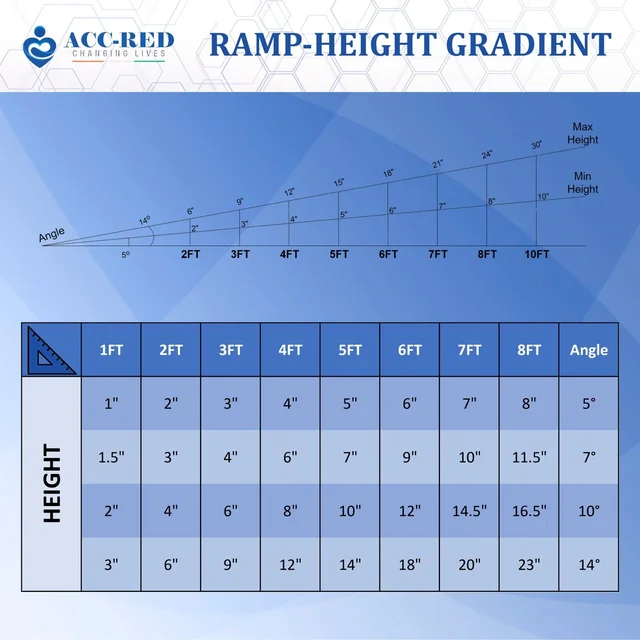

Slope guidance: Prefer 1:6–1:8 where space allows. The steepest 1:4 configuration requires a suitability check and attendant assistance for manual wheelchair use. Confirm the mobility device’s permitted incline before use.
Dimensions and Specifications
- Nominal ramp length: 4 ft / 48 inches.
- Total open length: 52 inches / 132.08 cm, including the 4-inch transition flap.
- Overall width: 32 inches.
- Usable width: 30 inches.
- Folded width: 16 inches.
- Product weight: 12.5 kg.
- Material: Aluminium.
- Load testing: In-house tested up to 300 kg.
Frequently Asked Questions
What step height can this ramp cover?
Acc-Red’s maximum-rise guidance for this model is 12 inches, subject to user, mobility-device and site suitability. Choose a longer ramp for a gentler incline. Manual wheelchair use at the steepest configuration requires attendant assistance.
Will it work with my wheelchair?

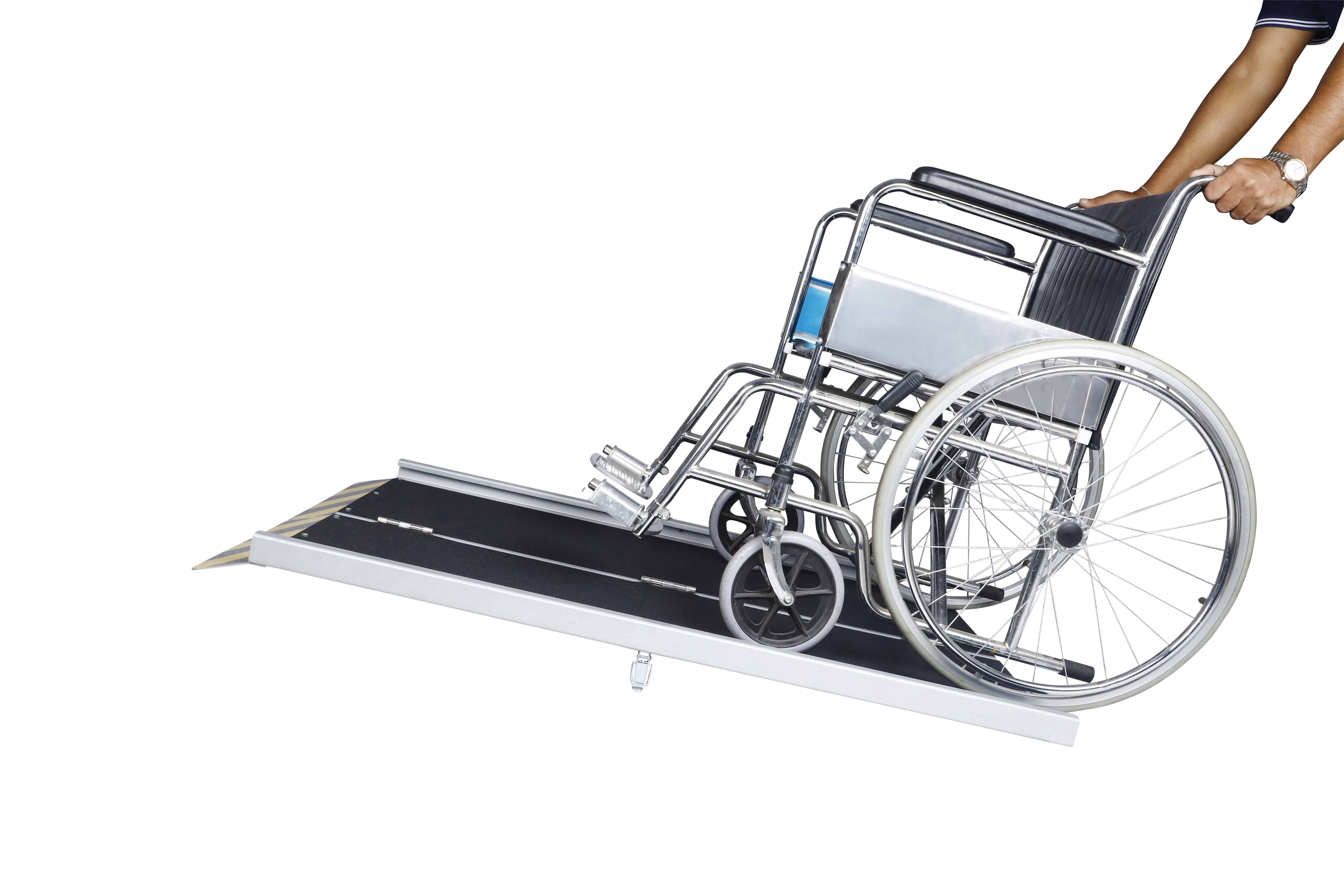

Suitable for compatible manual wheelchairs, electric wheelchairs and mobility scooters. Check device width, ground clearance, total loaded weight and the device manufacturer’s incline limits before use.
Why is a 4 ft ramp 52 inches long when open?
The nominal ramp length is 48 inches. The additional 4-inch transition flap rests on the upper landing, giving a total open length of 52 inches. The flap is not additional sloping length for calculating the recommended rise.
Does it require installation?
No assembly or permanent installation is required. Position it on firm, stable surfaces with the top flap securely supported. Rubber padding helps grip the landing but does not guarantee slip prevention.
Can one person carry and position it?
The ramp weighs 12.5 kg and includes a carry handle. One-person handling is possible when the operator can safely manage its weight and dimensions. Use assistance whenever needed for carrying, positioning or wheelchair movement.
Can I request securing pins?
Optional securing pins can be requested through your order notes or by contacting Acc-Red. Confirm the fixing method with our team before drilling or securing the ramp.
How do I clean and maintain it?
Brush away dirt and inspect the surface, rubber padding, handle and latch before use. Avoid submersion and standing water, which can weaken the anti-skid adhesive. Dry after exposure. Do not apply polish, wax or oil to the traction surface.
What are the shipping, warranty and return terms?
Free shipping, with dispatch within 5 working days. Includes a one-year warranty against manufacturing defects. Courier charges are deducted from eligible return refunds. Report delivery damage within 48 hours for a free replacement.
Made in India. Supported by Acc-Red.
Manufactured by Accessibility Redefined Private Limited. Includes one 4 ft Suitcase Ramp; optional securing pins are not standard inclusions.

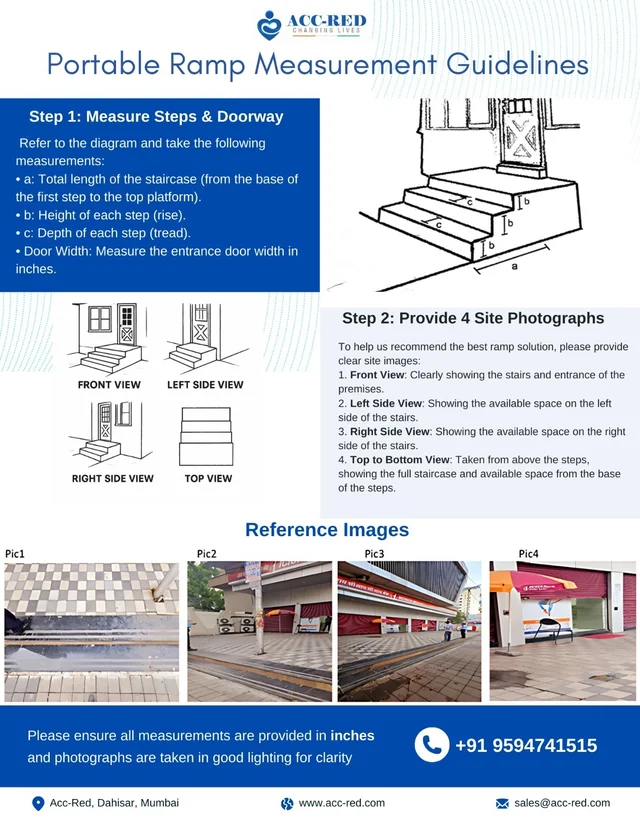

Need help choosing the right length? Send your step height, doorway width, wheelchair details and site photograph on WhatsApp: +91 95947 41515, or email sales@acc-red.com.
